Vacuum Bag Film

Vacuum Bag Film

General Purpose Vacuum Bag Film

Pro-Vac General Purpose Vacuum Bag Film
PV-150 General Purpose Vacuum Bag Film

PRO-VAC General Purpose Vacuum Bag Film is excellent for use in vacuum bagging, infusion, and other types of processing for composite parts. It’s a green, tough, puncture-resistant co-extrusion of polyolefin and nylon-based resins. Due to its structure, this product is less sensitive to deviations in humidity than other popular vacuum bag films. With a maximum use temperature of 248˚F (120˚C), this film is designed for composite processing at room or mildly elevated temperatures. The film’s range is appropriate for building polyester, vinyl ester and epoxy composites from small-scale automotive parts to large-scale wind blades and yachts.

Maximum use temperature of 248°F ( 120°C)

Sold in rolls. See roll sizes at bottom of page.

Download the PV-150 Technical Data Sheet



350°F Vacuum Bag Film

PV-157 350°F Vacuum Bag Film

PRO-VAC 350°F Vacuum Bag Film is a tough, high-temperature resistant co-extruded nylon-based material designed for use in the production of advanced composite structures such as wind turbine blades and nacelles, boat hulls and decks, and other industrial structures. This film is ideal for use in both resin infusion and prepreg molding applications and is resistant to all commonly used resin systems. Not suitable for use in autoclave processing of composites. Pre-production trials are recommended to confirm the suitability of PRO-VAC Vacuum Consumables with your unique laminate schedules and processes.

Maximum use temperature of 350°F (177°C)

Sold in 150m rolls.

Download PV-157 Technical Data Sheet



PV-215 Autoclave Vacuum Bag Film

PV-215 Autoclave Vacuum Bag Film
PV-215 Autoclave Vacuum Bag Film

PRO-VAC 215 Autoclave Vacuum Bag Film is a highly flexible multilayer nylon vacuum bagging film designed for processing advanced composite structures. It’s appropriate for wind turbine blades, nacelles, boat hulls, decks, and other industrial structures. Also works well when laminating security glass. This film is ideal for use in both oven and autoclave. The key benefits of this film are its high elongation and flexibility. The maximum recommended use temperature is 338°F (170°C).

Pre-production trials are recommended to confirm the suitability of PRO-VAC Vacuum Consumables with your unique laminate schedules and processes.

Maximum use temperature of 338°F (170°C)

Sold in 200m rolls.

Download PV-215 Technical Data Sheet

PV-150 General Purpose Vacuum Bag Film roll sizes and folding formats





PRODUCT ROLL SIZE m ROLL SIZE Ft FOLDING FORMAT
PV-150-1.52 1.52 m x 400 m 5′ x 1312′ Flat-sheet roll
PV-150-3 3 m x 200 m 10′ x 656′ V-sheet roll
PV-150-4 4 m x 200 m 13′ x 656′ V-sheet roll
PV-150-6 6 m x 125 m 19.5′ x 410′ Gusseted 4x, centrally slit roll
PV-150-8 8 m x 80 m 26′ x 262.5′ Gusseted 4x, centrally slit roll
PV-150-10 10 m x 75 m 33′ x 246′ Gusseted 4x, centrally slit roll
PV-150-12 12 m x 30 m 39′ x 98′ Gusseted 8x, C-folded centrally slit roll

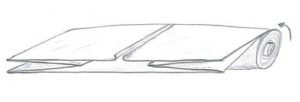

Folding format for 12 m bag film
PV-150-16 16 m x 34 m 52.5′ x 111.5′ Gusseted 8x, C-folded centrally slit roll
Folding format 16 m bag film
